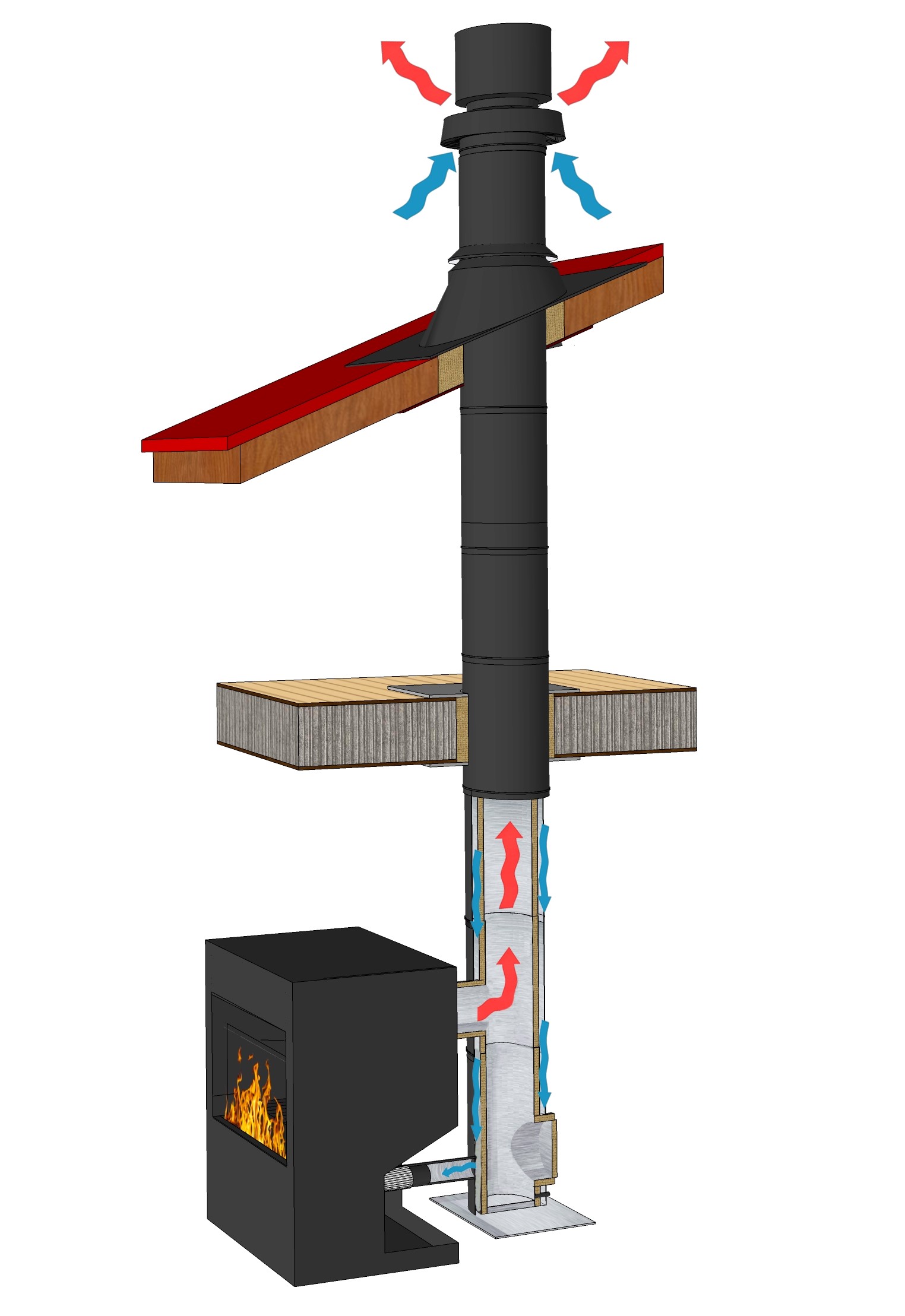

Triple-wall 25 mm Extra

Purpose: To remove the products of combustion from the combustion space to the atmosphere
Fuel: Oil, gas, solid
System marking according to EN 1856-1
Ø 80-300 mm, T600-N1-W-Vm-L50(050-100)-G80
T600°C – maximum operating temperature
N1 – natural draught
W – wet operating conditions
Vm – resistant to corrosion
G – resistance to soot fire
80 – distance to combustible materials
Flue liner - L50 – stainless steel 1.4404
Ø - 80-200 mm – 0.5; 0.6; 0.8; 1.0 mm
Ø - 250-300 mm – 0.6; 0.8; 1.0 mm
The middle pipe – stainless steel 1.4301
The outer pipe – stainless steel 1.4301
The outer pipe – painted stainless steel 1.4301
The pipe of the single wall air duct – stainless steel 1.4301 with silicone gasket
The pipe of the single wall air duct – painted stainless steel 1.4301 with silicone gasket
Insulation – injected mineral wool, thickness -25 mm, density 180 kg/m³
